Asme Ptc 19.3 Software

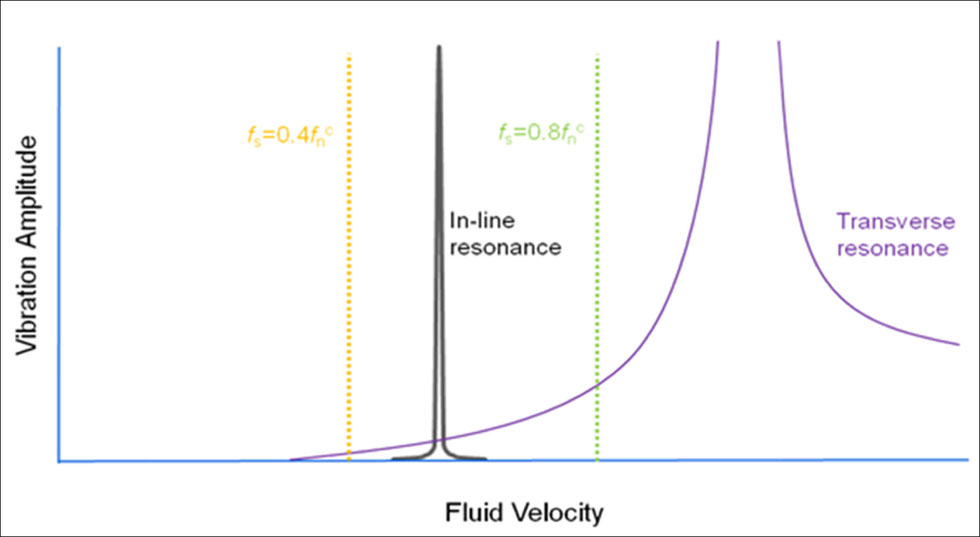

WIKA, member of the ASME workgroup 'Performance Test Code PTC 19.3', presents the new thermowell calculation software based on Microsoft® Excel®. The new software appropriate ASME PTC 19.3 TW-2016 is combining methods of Murdock and Brock with significant improvements concerning flexibility and security. Please register with the form below. The ASME PTC 19.3 is a thermowell stress calculation, which serves as a mathematical proof that the material chosen and the mechanical design will not fail given the effects of the operating conditions. The calculation provides guidance for establishing a comparison between the shedding frequency and the natural frequency of the thermowell.

Browse related products from ASME International

  • ASME International >Performance Test Codes
  • ASME International >PTC Series
  • ASME International >Thematic Collections and Certification Documents >ASME BPVC Reference Standards
  • ASME International >Thematic Collections and Certification Documents >ASME Petrochem Standards Collection without BPVC
    • Available Formats
    • Options
    • Availability
    • Priced From ( in USD )
    • Secure PDF
    • 👥
    • Immediate download
    • $85.00
    • Printed Edition
    • Ships in 1-2 business days
    • $85.00
    • Printed Edition + PDF
    • Immediate download
    • $145.00

Customers Who Bought This Also Bought

  • ASME PTC 19.2-2010
    Priced From $107.00

  • ASME PTC 30-1991 (R2016)
    Priced From $120.00

  • ASME PTC 12.4-1992 (R2014)
    Priced From $85.00

  • ASME PTC PM-2010
    Priced From $148.00

About This Item

Full Description

Asme Ptc 17

Asme
This Standard applies to thermowells machined from bar stock and includes those welded to or threaded into aflange as well as those welded into a process vessel or pipe with or without a weld adaptor. Thermowells manufacturedfrom pipe are outside the scope of this Standard.
Thermowells with specially designed surface structures (e.g., a knurled surface or a surface with spiral ridges)are beyond the scope of this Standard, due to the difficulty of providing design rules with broad applicability forthese types of thermowells.
Thermowell attachment methods, standard dimensions, parasitic vibration of a sensor mounted inside the thermowell,and thermal equilibrium of the sensor relative to the process stream are beyond the scope of this Standard.In addition, thermowells fabricated by welding, including flame spray or weld overlays, at any place along thelength of the shank or at the tip are outside the scope of this Standard.
The application of the overlay to a bar-stock thermowell may affect any number of critical attributes such asnatural frequency, damping, material properties, or surface finish. These changes are difficult to account for in thecalculations, therefore, there is risk that an inappropriately designed thermowell could be installed.
